Crown Block

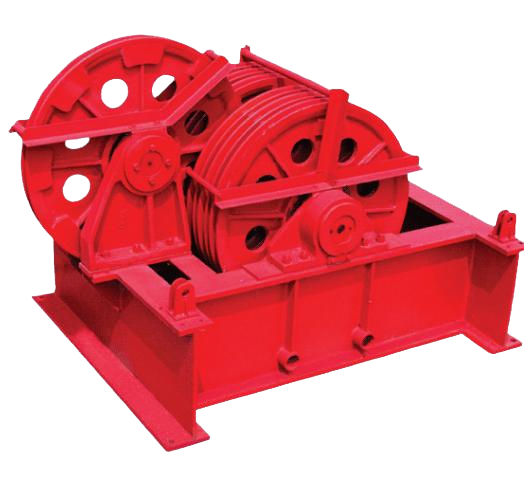

Heavy-Duty Drilling Rig Crown Block Assembly
The crown block is a critical component mounted at the top of the drilling derrick or mast. It consists of multiple sheaves (pulleys) mounted on a common frame that supports the drilling line. Working together with the traveling block, the crown block forms the pulley system that provides mechanical advantage for lifting and lowering the drill string, casing, and other drilling equipment.
Lanshi-VARCO Crown Block Parameters
| Model | TC135 | TC170 | TC225 | TC315 | TC450 | TC585 |
|---|---|---|---|---|---|---|
| Max load/kN | 1350 | 1700 | 2250 | 3150 | 4500 | 5850 |
| Sheave O.D. mm(in) | 915 (36) | 1005 (40) | 1120 (44) | 1270 (50) | 1524 (60) | 1524 (60) |
| No. of sheave | 5 | 6 | 6 | 7 | 7 | 8 |
| Line O.D. mm(in) | 29 (1 1/8) | 29 (1 1/8) | 32 (1 1/4) | 35 (1 3/8) | 38 (1 1/2) | 42 (1 5/8) |
| Overall size L×W×H | 2500 × 2050 × 1920 | 2687 × 2150 × 2046 | 3200 × 3347 × 3640 | 3295 × 2776 × 2514 | 3068 × 2906 × 3576 | 3070 × 3000 × 3600 |
| Weight/Kg | 2400 | 2920 | 5310 | 7400 | 9500 | 10000 |
BOMCO Crown Block Parameters
| Model | TC30 | TC50 | TC90 | TC135 | TC170 | TC225 | TC315 | TC450 |
|---|---|---|---|---|---|---|---|---|
| Max load/kN | 300 | 500 | 900 | 1350 | 1700 | 2250 | 3150 | 4500 |
| Sheave O.D. mm(in) | 475 (18 3/4) |
610 (24) |
762 (30) |
1005 (40) |
1005 (40) |
1120 (44) |
1270 (50) |
1524 (60) |
| No. of sheaves | 4 | 5 | 5 | 5 | 6 | 6 | 7 | 7 |
| Line O.D. mm(in) | 24 (15/16) |
24 (15/16) |
26 (1) |
29 (1 1/8) |
29 (1 1/8) |
32 (1 1/4) |
35 (1 3/8) |
38 (1 1/2) |
| Overall size mm L × W × H |
738 | 860 | 2447 | 2320 | 2668 | 3668 | 3112 | 3410 |
| 472 | 670 | 1208 | 1436 | 2460 | 2709 | 2783 | 2753 | |
| 575 | 588 | 1092 | 1781 | 1855 | 2469 | 2800 | 2938 | |
| Weight/kg | 1245 | 1464 | 1500 | 2775 | 4540 | 5650 | 7600 | 9800 |
Product Description
- Heavy-Duty Construction: Built to support maximum hook loads and drilling line tensions
- Multiple Sheaves: Configured with multiple pulleys for optimal line reeving
- Precision Bearings: High-quality bearings ensure smooth operation and long service life
- Robust Frame: Steel frame construction provides structural integrity and durability
- Wire Line Compatibility: Designed for standard drilling line sizes and configurations
- Easy Maintenance: Accessible design for inspection and lubrication
- Safety Features: Includes guards and safety devices for operational safety
Applications
- Oil & Gas Drilling: Land and offshore drilling rigs
- Drilling Operations: Supporting drill string tripping operations
- Casing Running: Running and cementing casing strings
- Well Service: Workover and well maintenance operations
- Deep Well Drilling: High-load deep well applications
- Heavy-Duty Drilling: Demanding drilling conditions
Competitive Advantages
- Heavy-Duty Design: Built for maximum load capacity and durability
- Precision Manufacturing: High-quality components and assembly
- Reliable Performance: Proven track record in demanding conditions
- Easy Installation: Designed for straightforward derrick mounting
- Low Maintenance: Minimal maintenance requirements
- Competitive Price: Top quality at competitive prices
- Professional Export Service: Experienced in international trade
- Fast Response: Quick response to inquiries
