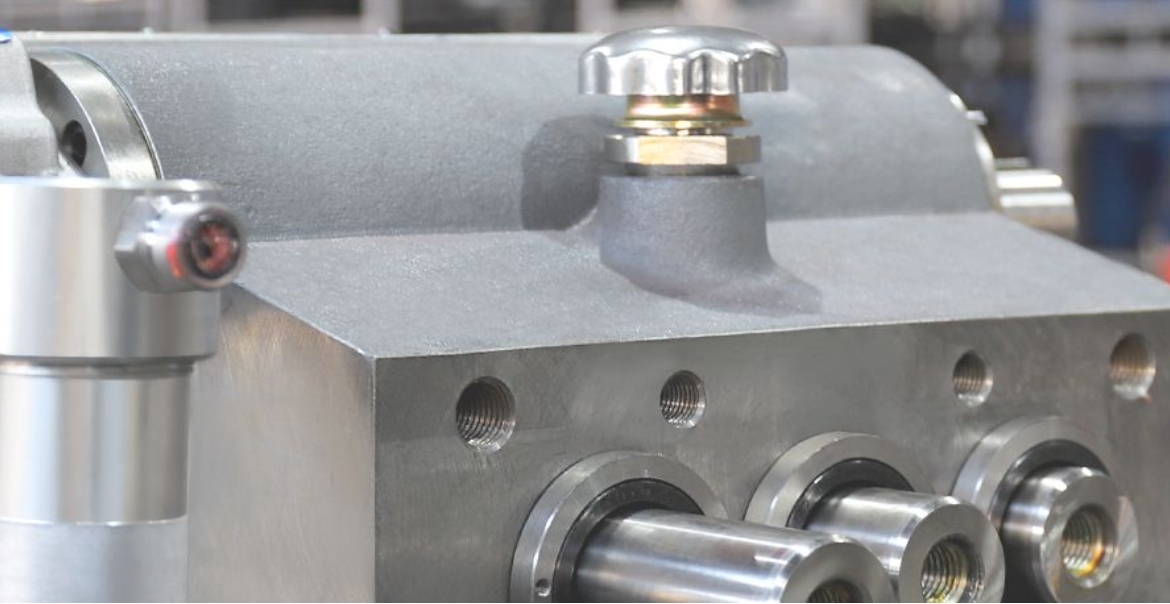

3DK-SZ High Pressure Pump
High Pressure Plunger Pump - 70MPa Discharge Pressure
The 3DK-SZ features splash or forced lubrication for the power end with stable driving, low friction coefficient, low temperature operation, and suitability for long-time continuous work. The liquid end is improved based on the 3D2-S pump, with discharge pressure increased to 70MPa, making it suitable for more demanding high-pressure applications across various industries.
Technical Specifications
| Plunger Dia. (mm) | Power (KW) | Flow (L/min) | Flow (m³/h) | Pressure (MPa) |
|---|---|---|---|---|
| 20 | 55-75 | 34 | 2.04 | 68 |
| 22 | 55-75 | 40 | 2.4 | 62 |
| 24 | 55-75 | 48 | 2.88 | 55 |
| 25 | 55-75 | 50 | 3.0 | 53 |
| 26 | 55-75 | 57 | 3.42 | 48 |
| 28 | 55-75 | 65 | 3.9 | 45 |
| 30 | 55-90 | 70 | 4.2 | 42 |
RPM: 1480 | Plunger Impact Frequency: 405 min⁻¹ / 500 min⁻¹
Weight Information
440 Kg
Pump Weight
140 Kg
Seat Weight
Applications
- Oil Field: High pressure water jetting and hydraulic operations
- Coal Excavation: Coal mining with high pressure water systems
- Surface Cleaning: Excavation equipment surface cleaning
- High Pressure Water Jetting: Industrial cutting and cleaning applications
- Powder Metallurgy: High pressure fluid applications
- Ship Rust Elimination: Marine vessel maintenance
- Basic Engineering: Foundation and construction applications
- Liquid Transportation: Industrial fluid transfer
- Pressure Testing: Engineering pressure tests for rubber hose, metal tube and oil well
Competitive Advantages
- Enhanced Pressure: 70MPa discharge pressure for more applications
- Improved Design: Based on proven 3D2-S with enhanced liquid end
- Stable Operation: Low friction, low temperature, suitable for long-time work
- Competitive Price: Top quality products at competitive market prices
- Professional Export Service: Experienced in international trade and export procedures
- Customization: Provide all products according to customer's specific requirements
- Fast Response: Respond to inquiries within the shortest time
